LC LC - OS2 Trample Tough Mil-tac Fiber

$34.95
FCDUS488v104
92 Items
In stock

Trample Tough™ OS2 mil-tac fiber is suitable for high traffic areas and abusive environments, remote video/broadcasting and harsh military applications. Preterminated with LC connectors and 6” armored breakouts which are reinforced for extra strength. This is one of the toughest, most durable cables on the market and can survive severe blunt force, sharp bends and heavy traffic of any kind.

Trample Tough™ is also commonly used in tradeshows, music festivals, indoor/outdoor arenas including sporting events and concerts. It is ideal for any indoor or outdoor area in which it needs to withstand extreme conditions or high vehicle/foot traffic. This cable uses TPU material which has excellent flexibility and is water resistant. It is also suitable for retractable wiring environments such as military communications or mobile wiring. Trample Tough is built with LSZH, which is often used where safety and reliability are critical. It's made with materials that produce low/limited smoke and non-toxic halogens when exposed to fire or high temperatures.

Each cable comes with individual test reports and a lifetime warranty. Lengths of 70 meters and above come on a spool for ease of use.

Length
Quantity

Trample Tough™
  • Security Policy
    Security Policy
  • Delivery Policy
    Delivery Policy
  • Return Policy
    Return Policy

Trample Tough™ is a true Military-Tactical fiber optic cable composed of tight buffer fiber, kevlar and a TPU jacket, which is pressure and oil resistant. It also has an extreme tensile strength, excellent flexibility, flame retardant and able to operate in a wide range of temperatures. In addition, the 6” breakouts are constructed with micro-armor, for extra stability when installing or removing the pre-terminated LC connectors. Test Procedures

  • Optical Characteristics
  • Vibration Test
  • Thermal Cycling and Aging
  • Impact and Humidity Resistance
  • ROHS Compliant
  • Tested according to IEC

FCDUS488v104
92 Items

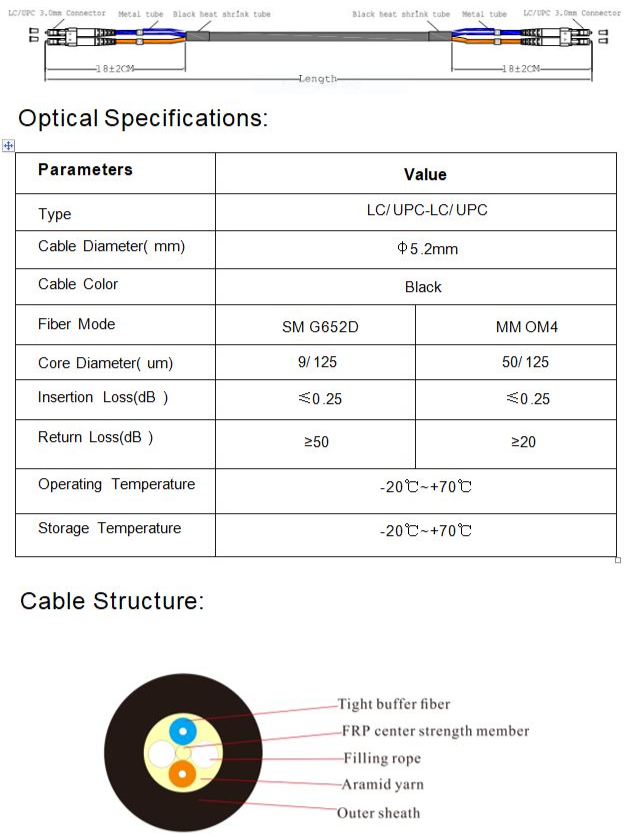

Data sheet

Cable Type
GJBFJH-2
Operating Temperature
-20~ +60
Fiber type
Corning G652D
Breakout type
6 inch micro-armored – Blue/Orange
Tight buffer color
Blue
Tight buffer material
LSZH
Tight buffer diameter (mm)
0 .85 ± 0 .05
Outer jacket color
Black
Outer jacket material
TPU
Outer jacket thickness (mm)
1 .3 ± 0 . 1
Outer jacket diameter (mm)
5 .2 ± 0 .2
Center strength member
FRP and Aramid yarn
Cable weight ( kg/ km)
27 .5 ± 10%
Min. bending radius (mm)
(Static) 10 times of outer diameter - ( Dynamic) 20 times of outer diameter
Attenuation(dB/ km)
SM: ≦ 0 .4 at 1310nm - MM: ≦ 3 .5 at 850nm
Short term tensile (N )
1500
Short term Crush resistance (N/ 100mm)
1000

Specific References

upc
715786682240
