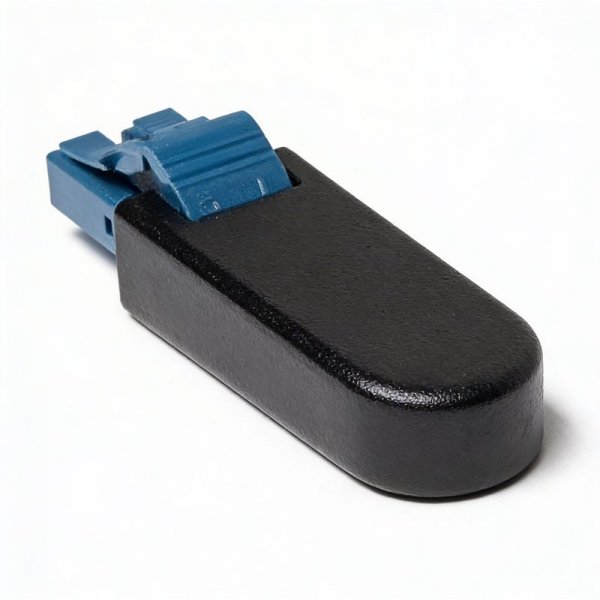

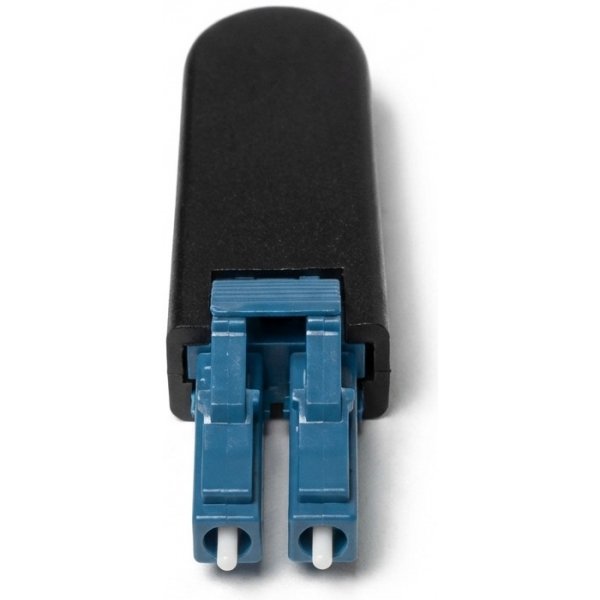

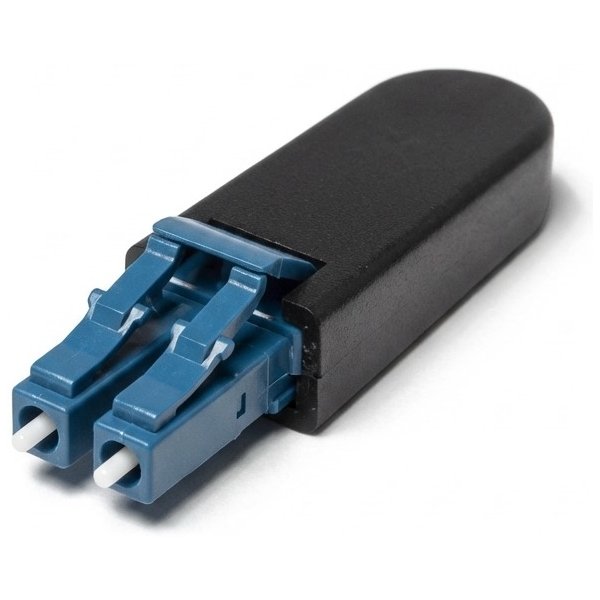

LC Loopback Singlemode Tester | Fiber Optic 9/125 Loopback Adapter

Data sheet

Description

Fiber Optic Loopback Test Connector

Termination

LC to LC Fiber Optic Cable

Polish Type

UPC

Connector 1

LC / UPC - Male

Polish Connector 1

UPC (Ultra Physical Contact)

Connector 2

LC / UPC - Male

Polish Connector 2

UPC (Ultra Physical Contact)

Max Connector Loss

0.50 dB

Typical Connector Loss

0.30 dB

Typical Return Loss

-55 dB

Optical Mode Type

OS2 (9/125 Singlemode) - 9 micron core, 125 micron cladding. 10 Gigabit speed from 5-10km at 1310nm and 30-40km at 1550nm.

Core / Cladding

9/125µm - Singlemode fiber optic cable has a 9 micron diameter fiber core and a 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)

Core Material

Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.

Mode Type

Singlemode – 9/125 Singlemode OS2 Fiber Cable is used for high speed fiber optic networking, excellent for retaining light pulse fidelity over long distances, high bandwidth.

Compliance

ROHS Compliant

Quality Control

Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.

Warranty

Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.

Current Specials

Free Shipping / Same Day Shipping available on fiber optic patch cable orders

Storage Temperature

-40° C to + 70° C

Operating Temperature

-20° C to + 70° C
