OM4 MTP/MPO to MTP/MPO 12 Strand Female Multi-Fiber Patch Cable 100G
$123.95
FCDUS362v10535
500 Items
In Stock

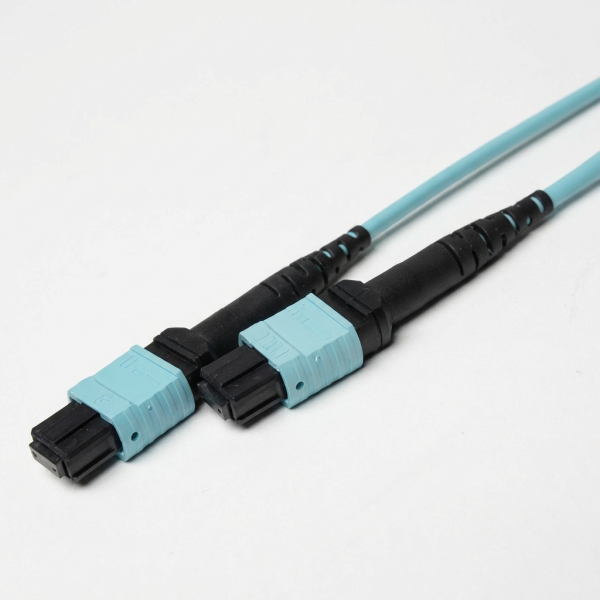

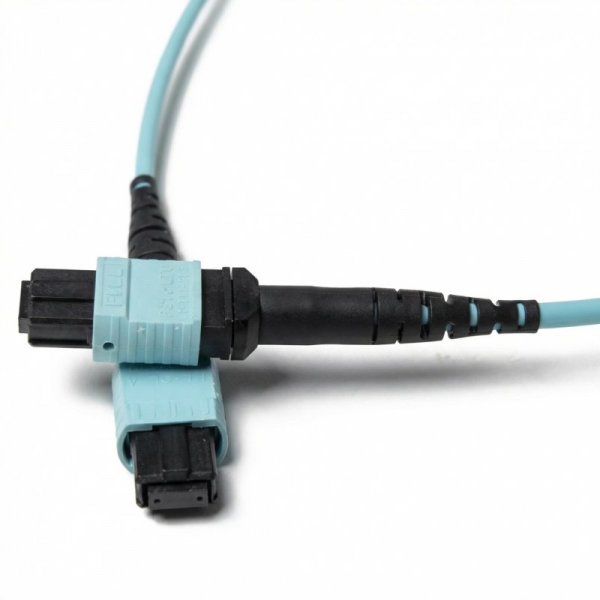

OM4 MTP/MPO to MTP/MPO 12 Strand Multi-Fiber Patch Cable. MTP to MTP female (no pins), OFNP Multimode 50/125 100Gb Corning fiber, each with 125 micron cladding. MTP/MPO female fiber connectors with 12 OM4 multimode fiber strands. MPO 12 fiber connector on both sides of this multi-fiber, high density, optical patch cord with 12 Laser-Optimized Multimode Fiber (LOMMF) 100Gb rated fiber cores.
-
Security Policy -
Delivery Policy -
Return Policy

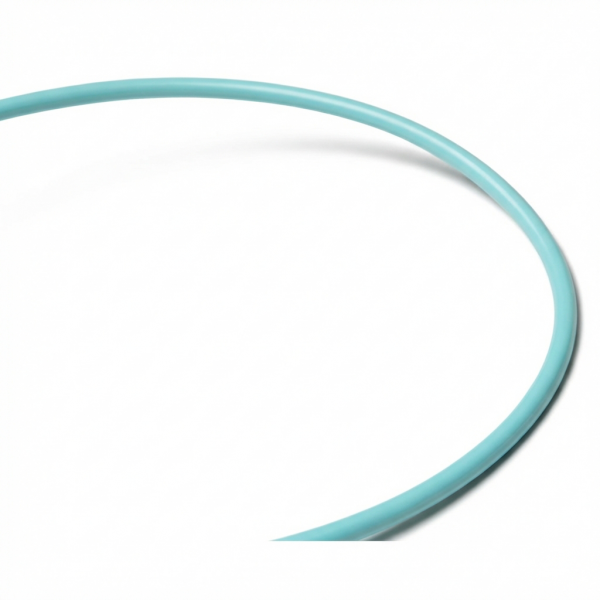

OM4 MPO/MTP to MTP/MPO 12 Strand Multi-fiber patch cable assembly, OFNP Plenum, 100Gb Multimode 50/125 Corning optical fiber cores/cladding. Connector 1 is terminated with a MTP female (no pins) multi-fiber push-on style contact connection. Connector 2 is also terminated with a MTP female (no pins) multi-fiber push-on style contact connection for reliable connectivity in compact, high density fiber patch cable environments. Each MPO/MTP multi-fiber connector has 12 x 50/125 optical fiber strands in a plenum jacket that is fire retardant, water resistant and free from electromagnetic interference.
Method B Polarity: This fiber MTP/MPO patch cable uses Method Type B Fiber Polarity, the most commonly used method. Type B polarity uses key up connectors on both ends so fiber Position 1 (Tx) arrives at Position 12 (Rx) on the other end, Position 2 (Rx) fiber arrives at Position 11 (Tx) at the other end, etc.
Engineered for fast and reliable connectivity between switches, transceivers, media converters, patch panels and other 1/10/40/100g fiber optic equipment. Fully supports Fast Ethernet, 100 Gigabit Ethernet, SFP+, QSFP+, Fiber Channel, OIF, ATM, VCSELs and other service provider applications. Ethernet Over OM4 Multimode Fiber Details:
Modal Bandwidth 3500/4700MHz-km 850nm/1300nm
- Fast Ethernet 100Basw-FX 2000m
- 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord)
- 10Gb Ethernet 10GBase-SR 400m
- 40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4)
- 100Gb Ethernet 100GBase-SR10 150m
Each fiber optic cable assembly ordered from FiberCablesDirect is individually tested and bagged with test results inside. We also provide a Lifetime warranty on all our products. Orders for Om4 MPO to MPO 12 strand fiber patch cables above 35 meters may require an additional 1 to 2 days to ship depending on the quantity ordered. However, most orders ship within 24 hours or less.
| Description: | OM4 MTP/MPO to MTP/MPO Fiber Optic Patch Cable |
| Type: | 12 Fiber OM4 MTP/MPO Multi-Fiber Patch Cable With Method B Type Polarity |
| Technology: | 100Gb Corning Laser Optimized Multimode Fiber (LOMMF) |
| Connector 1: | MTP®/MPO (female) 12 Fiber Strand Connector (no pins) |
| Connector 2: | MTP®/MPO (female) 12 Fiber Strand Connector (no pins) |
| Core / Cladding: | 10/40/100Gbps 50/125µm Multimode OM4 Corning Optical Core/Cladding |
| Strands: | 12 Strand (12 50um Fiber Cores) |
| Network Speed: | 10Gbps / 40Gbps / 100Gbps |
| Attenuation: | 850 nm: 3.5 dB/km or at 1300 nm: 1.0 dB/km |
| Jacketing: | Plenum OFNP |
| Jacket Color: | Aqua |
| Applications: | Gigabit Ethernet, Fiber Channel and OIF |
| Environment: | Operating Temperature: -20°C to +70°C |
| Standards: | Attenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 |
| Compliance: | RoHS Compliant |
| Quality Control: | Fully tested by qualified technicians and test results shipped with product. |
| Warranty: | This MTP/MPO to MTP/MPO fiber patch cable comes with a Lifetime warranty. |
Every fiber optic patch cable FiberCablesDirect ships is individually tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician and carefully packaged with test results. We provide 35+ popular length options in our online catalogs between 0.5 and 300 meters that can ship the same day. Expedited Next Day, 2 Day, 3 Day, Ground and other delivery options available from USPS and UPS. FedEx service options also available for international orders.
We do it right with quality products, superior packaging and fast delivery anywhere in the world.
FCDUS362v10535
500 Items
Data sheet
- Compatibility
- MTP® Compatible MPO Connector - MTP® (Multi-fiber Termination Push-on), is a registered trademark of US Conec.
- Description
- OM4 MPO to MPO 12 Fiber Patch Cable | MTP Compatible Multi-Fiber 100Gb 50/125 Multimode Fiber Optic Jumper | Method B Type Polarity
- Product Type
- MTP/MPO 12 Fiber Strand Patch Cable | MTP Compatible Multi-Fiber Assembly
- Cable Type
- MPO Female to MPO Female (no pins) Pre-terminated Fiber Optic Jumpers / Fiber Network Patch Cables
- Connector Type
- MTP/MPO to MTP/MPO 12 Fiber Patch Cable | MTP Compatible, Female to Female (no pins). Multi-Fiber, Optical Assembly.
- Termination
- MTP/MPO Female to MTP/MPO Female - 12 Fiber Strands, Single Push-On Enclosure (no pins)
- Connector 1
- MTP/MPO - 12 Strand Multi-fiber Female Connector in a Single Push-On Enclosure (no pins)
- Polish Connector 1
- UPC (Ultra Physical Contact)
- Connector 2
- MTP/MPO - 12 Strand Multi-fiber Female Connector in a Single Push-On Enclosure (no pins)
- Polish Connector 2
- UPC (Ultra Physical Contact)
- Max Connector Loss
- 0.50 dB
- Typical Connector Loss
- 0.30 dB
- Typical Return Loss
- -25 dB
- Optical Mode Type
- OM4 Laser Optimized Multimode Fiber (LOMMF) - 50/125um core/cladding | 100G GbE 100GBase-SR10 150m, 40G GbE 40GBase-eSR4 QSFP+ 550m, 40G GbE 40GBase-SR4 150m, 10G GbE 10GBase-SR 400m, 1G GbE 1GBase-SX 550m (w/mode-conditioning).
- Core / Cladding
- 50/125µm - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
- Core Material
- Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
- Mode Type
- Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
- Technology
- Laser-Optimized Multimode Fiber (LOMMF)
- Network Speed
- 10 Gb/s, 40 Gb/s, and 100 Gb/s Transmission (OM4)
- 1Gb Ethernet Dist
- OM4 Distance is 1040 Meters at 850nm / 600 Meters at 1310nm.
- 10Gb Ethernet Dist
- OM4 Distance is 550 Meters at 850 nm / 300 Meters at 1310 nm
- Bandwidth
- OM4 GbE Laser Optimized Fiber - 3500MHz-km @ 850nm, 4700MHz-km @1300nm | Optimized for VCSELS (vertical-cavity surface-emitting lasers).
- Strand Count
- 12 Fiber Strands
- Jacket Color
- Aqua - This is the standard jacket color for OM3/OM4 multimode fiber jumper cords / fiber patch cables.
- Jacket Material
- Plenum-rated (OFNP)
- UL Rating:
- OFNP (Optical fiber, nonconductive, plenum) - Certified for use in plenum applications
- Compliance
- ROHS Compliant
- Length Options
- 0.5-Mtr 1-Mtr 2-Mtr 3-Mtr 4-Mtr 5-Mtr 6-Mtr 7-Mtr 8-Mtr 9-Mtr 10-Mtr 12-Mtr 15-Mtr 20-Mtr 25-Mtr 30-Mtr 35-Mtr 40-Mtr 45-Mtr 50-Mtr 55-Mtr 60-Mtr 65- Mtr 70-Mtr 75-Mtr 80-Mtr 85-Mtr 90-Mtr 95-Mtr 100-Mtr 125-Mtr 150-Mtr 200-Mtr 250-Mtr 300-Mtr
- Quality Control
- Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
- Warranty
- Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
- Current Specials
- Free Shipping / Same Day Shipping available on fiber optic patch cable orders
- Storage Temperature
- -40° C to + 70° C
- Operating Temperature
- -20° C to + 70° C
Specific References
- upc
- 646816939792
