OM4 LC LC Fiber Patch Cable | 100G Duplex 50/125 Multimode

$10.20
FCDUS222v2109
79 Items
In stock

100G OM4 LC LC Fiber Patch Cable | Duplex 50/125 Multimode Jumper | Length Options: 0.5-300M. Assembled with ceramic ferrule LC duplex connectors and Corning 50/125um laser optimized multimode fiber core/cladding, 100Gbps rated fiber optic jumpers.  A high performance, LSZH rated, zip-cord fiber cable has an OD of 2.0mm. Each cable comes individually packaged with duplex clips and test results. Lifetime warranty.

Length
Quantity
Add Compare

Home , 10 Gig 50/125 Multimode Cables , OM4 100G Multimode Patch Cables , LC Fiber Patch Cables , LC LC Fiber Patch Cables
  • Security Policy
    Security Policy
  • Delivery Policy
    Delivery Policy
  • Return Policy
    Return Policy

OM4 LC LC Fiber Patch Cable | 100Gb Duplex 50/125 Multimode Jumper Cord. Accelerate your network's performance to the edge of technology with this Corning 50/125um core/cladding, OM3/OM2 backwards compatible, laser optimized 10/40/100Gb multimode fiber cable and extend your 100Gig reach up to 150 meters. Assembled with LSZH rated, 2.0mm outer diameter zip cord, terminated with 1.25mm ceramic ferrule LC duplex type connectors and includes pre-installed LC duplex clips for quick installation and management in high density cable environments. Each cable comes individually bagged with test results and a lifetime warranty.

Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss -25 dB

Engineered for fast and reliable connectivity between switches, transceivers, media converters, patch panels and other 100g fiber optic equipment. Fully supports fast Ethernet, 100 Gigabit Ethernet, SFP+, QSFP+, Fiber Channel, OIF, ATM, VCSELs and other service provider applications.  Ethernet Over OM4 Multimode Fiber Details:

3500/4700MHz-km Modal Bandwidth 850nm/1300nm
Fast Ethernet 100Basw-FX 2000m
1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord)
10Gb Ethernet 10GBase-SR 400m
40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4)
100Gb Ethernet 100GBase-SR10 150m


Every fiber optic patch cable FiberCablesDirect ships is individually tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician and carefully packaged with test results.  We provide 35+ popular length options in our online catalogs between 0.5 and 300 meters that can ship the same day. Expedited Next Day, 2 Day, 3 Day, Ground and other delivery options available from USPS and UPS. FedEx service options also available for international orders.

We do it right with quality products, superior packaging and fast delivery anywhere in the world.

Didn't find what you're looking for?

Try our Custom Cable Configurator, quickly build your own customized fiber optic cable and add to cart.  Select cable type, length, connectors, modality, strand count, jacket type, quantity and add to cart... we build to order.

Call in your Custom Cable Request toll free at (866) 933-4237 and our support team will help you determine your perfect fiber cable solution.

Additional Ordering Options:

Call in your order toll free at (866) 933-4237 and we'll process right over the phone. Pay with a Check, Credit Card, or Create an account and pay with a PO#.

Call in your quote request toll free at (866) 933-4237 or fill out our Quick Quote form.

FCDUS222v2109
79 Items

Data sheet

Description
Multimode 50/125 Duplex Fiber Optic Patch Cable / OM2 Fiber Jumper Cord
Product Type
Duplex Fiber Cable
Cable Type
Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
Termination
LC to LC Fiber Optic Cable
Polish Type
UPC
Connector 1
LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Polish Connector 1
UPC (Ultra Physical Contact)
Connector 2
LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Polish Connector 2
UPC (Ultra Physical Contact)
Max Connector Loss
0.50 dB
Typical Connector Loss
0.30 dB
Typical Return Loss
-25 dB
Optical Mode Type
OM4 Laser Optimized Multimode Fiber (LOMMF) - 50/125um core/cladding | 100G GbE 100GBase-SR10 150m, 40G GbE 40GBase-eSR4 QSFP+ 550m, 40G GbE 40GBase-SR4 150m, 10G GbE 10GBase-SR 400m, 1G GbE 1GBase-SX 550m (w/mode-conditioning).
Core / Cladding
50/125µm - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
Core Material
Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
Mode Type
Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
Technology
Laser-Optimized Multimode Fiber (LOMMF)
Strand Count
2 Fiber Strands
Jacket Color

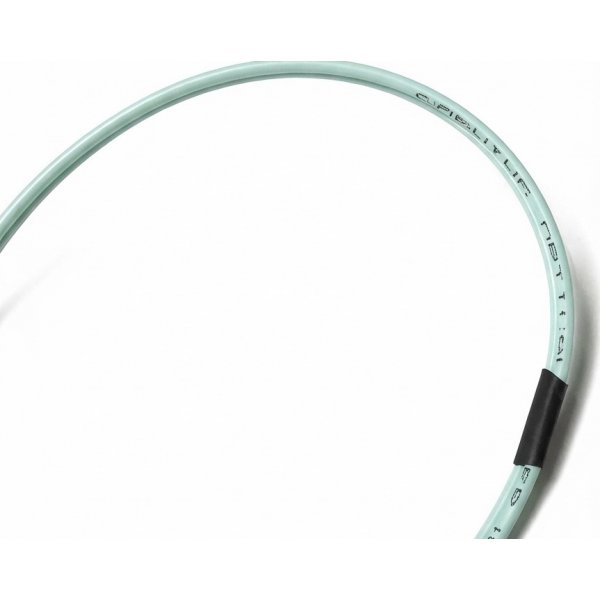

Aqua - This is the standard jacket color for OM3/OM4 multimode fiber jumper cords / fiber patch cables.
Jacket Material
PVC (polyvinyl chloride) - Fire-retardant and very flexible for easy installation
Jacket OD
2.0mm Outer Diameter Jacket
UL Rating:
OFNR (Optical fiber, nonconductive, riser) - Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs
Compliance
ROHS Compliant
Length Options
0.5-Mtr 1-Mtr 2-Mtr 3-Mtr 4-Mtr 5-Mtr 6-Mtr 7-Mtr 8-Mtr 9-Mtr 10-Mtr 12-Mtr 15-Mtr 20-Mtr 25-Mtr 30-Mtr 35-Mtr 40-Mtr 45-Mtr 50-Mtr 55-Mtr 60-Mtr 65- Mtr 70-Mtr 75-Mtr 80-Mtr 85-Mtr 90-Mtr 95-Mtr 100-Mtr 125-Mtr 150-Mtr 200-Mtr 250-Mtr 300-Mtr
Quality Control
Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
Warranty
Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
Current Specials
Free Shipping / Same Day Shipping available on fiber optic patch cable orders
Storage Temperature
-40° C to + 70° C
Operating Temperature
-20° C to + 70° C

Specific References

upc
635635709006
