OM2 SC ST Plenum Duplex Fiber Patch Cable 50/125 Multimode

$30.23

Part Number: FCDUS369v10635

In stock 500 Items

In stock

Made in USA

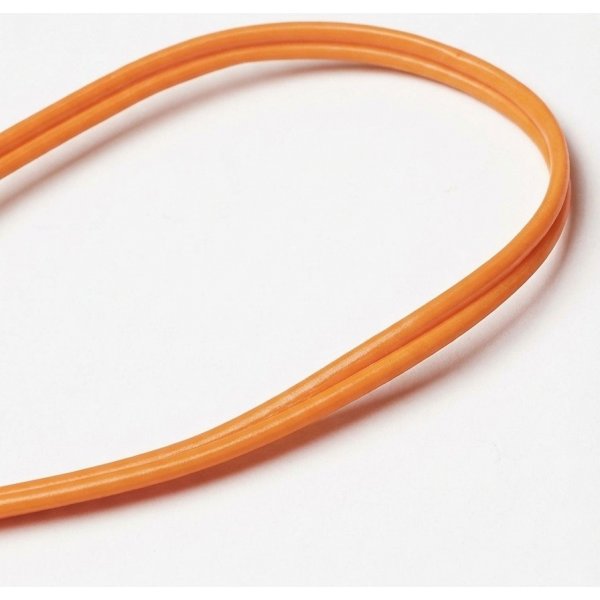

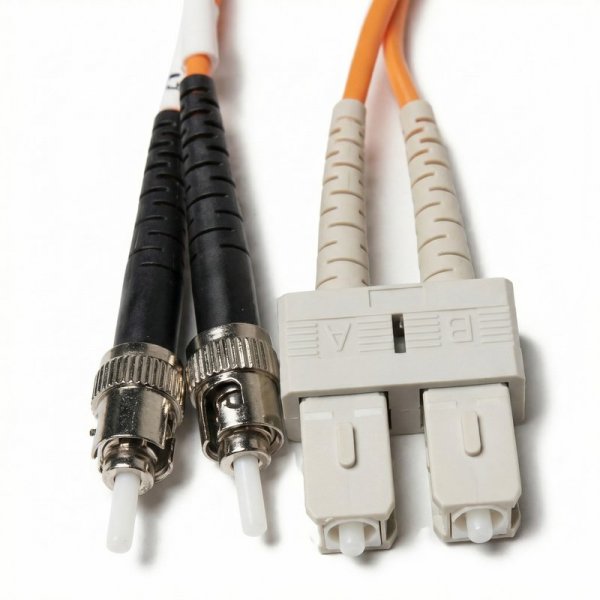

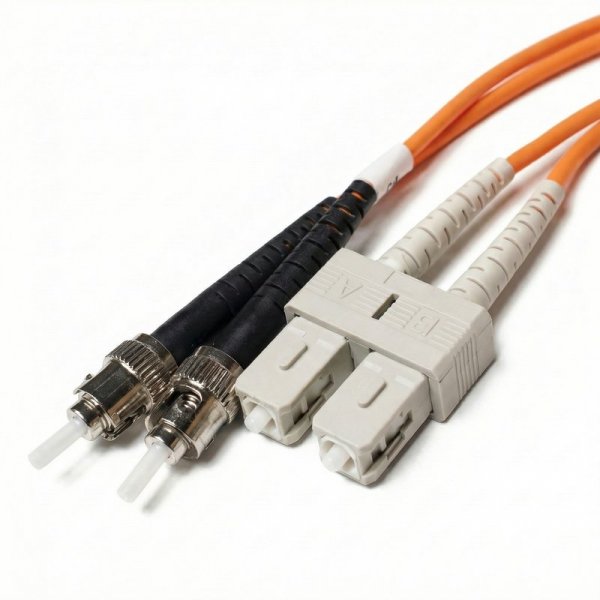

OM2 SC ST Fiber Optic Cables | Plenum Duplex 50/125 Multimode Jumpers. OFNP Plenum rated multimode fiber patch cable assembly with orange colored, self-extinguishing, 3mm outer diameter jacket. Corning 50/125u fiber cores terminated with 2.5mm ceramic ferrule SC fiber optic cable connectors and 2.5mm stainless steel ferrule, push and twist, ST fiber optic cable connectors.

Length

Quantity

Add Compare

Security Policy
Delivery Policy
Return Policy

Product Details

Reference FCDUS369v10635

In stock 500 Items

Data sheet

Description: Multimode 50/125 Duplex Fiber Optic Patch Cable / OM2 Fiber Jumper Cord
Product Type: Plenum OFNP Fiber Optic Patch Cable
Cable Type: Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
Termination: SC to ST Fiber Optic Cable
Connector 1: SC Duplex, 2.5mm form factor connector, durable snap-in ceramic ferrule.
Polish Connector 1: UPC (Ultra Physical Contact)
Connector 2: ST Duplex, a long cylindrical, spring loaded connector with 2.5 mm ferrule.
Polish Connector 2: UPC (Ultra Physical Contact)
Max Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Optical Mode Type: OM2 Standard Multimode Fiber - 50/125um core/cladding | 10G GbE 10GBase-SR 82m, 1G GbE 1GBase-SR 550m.
Core / Cladding: 50/125µm - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
Core Material: Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
Mode Type: Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
1Gb Ethernet Dist: OM2 Distance is 600 Meters at 850 nm / 600 Meters at 1310 nm
10Gb Ethernet Dist: OM2 Distance is 82 Meters at 850 nm / 300 Meters at 1310 nm
Bandwidth: OM2 GbE LAN Fiber - 500MHz-km @850nm, 500MHz-km @1300nm.
Strand Count: 2 Fiber Strands
Jacket Color: Orange - This is the standard jacket color for OM1/OM2 multimode fiber jumper cords / fiber patch cables.
Jacket Material: Plenum-rated (OFNP)
Jacket OD: 3.0mm Outer Diameter Jacket
UL Rating:: OFNP (Optical fiber, nonconductive, plenum) - Certified for use in plenum applications
Compliance: TAA Compliant
Length Options: 0.5-Mtr 1-Mtr 2-Mtr 3-Mtr 4-Mtr 5-Mtr 6-Mtr 7-Mtr 8-Mtr 9-Mtr 10-Mtr 12-Mtr 15-Mtr 20-Mtr 25-Mtr 30-Mtr 35-Mtr 40-Mtr 45-Mtr 50-Mtr 55-Mtr 60-Mtr 65- Mtr 70-Mtr 75-Mtr 80-Mtr 85-Mtr 90-Mtr 95-Mtr 100-Mtr 125-Mtr 150-Mtr 200-Mtr 250-Mtr 300-Mtr
Quality Control: Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
Warranty: Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
Current Specials: Free Shipping / Same Day Shipping available on fiber optic patch cable orders
Storage Temperature: -40° C to + 70° C
Operating Temperature: -20° C to + 70° C
