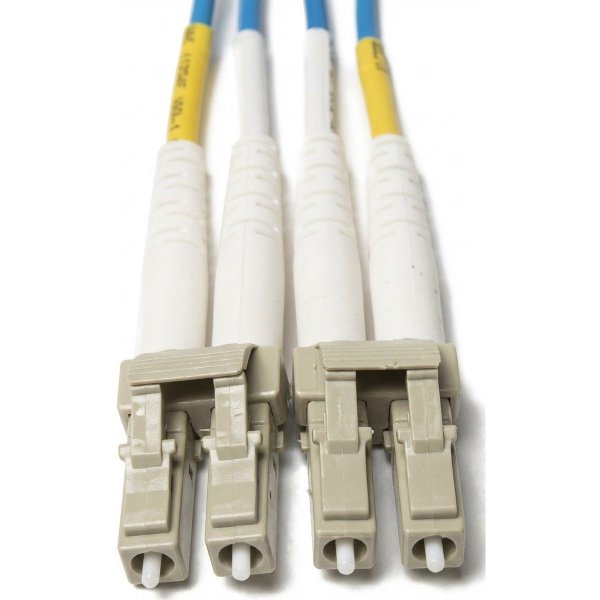

OM1 LC LC Fiber Patch Cable | Blue 1G Duplex 62.5/125 Multimode
$29.95
FCDUS217v2015
413 Items
In stock
Blue OM1 LC LC Fiber Patch Cables | 1Gb Duplex Corning 62.5/125 Multimode Fiber Optic Assembly. Durable small form factor (sff), 1.25mm ceramic ferrule, LC fiber connectors with duplex clips. High bandwidth 62.5um Corning multimode fiber (mmf) cable for high speed, low loss, data transmission. Blue OFNR, 2.0mm outer diameter, PVC jacketed jumpers with zip-cord.
-
Security Policy -
Delivery Policy -
Return Policy
OM1 LC LC Fiber Patch Cable | Blue 1Gb Duplex 62.5/125 Multimode Jumper Cord. Accelerate your network's performance with this Corning 62.5/125 core/cladding, 1/10Gb multimode fiber cable and extend your 1Gig reach up to 600 meters. Assembled with durable, OFNR riser rated, blue, 2.0mm o.d., PVC jacket that is water resistant, UV resistant, fire retardant and immune to electrical interference. Operating temperature between -20°C and +60°C. This OM1 fiber cable comes pre-terminated with small form factor (sff), 1.25mm ceramic ferrule, LC connectors (includes pre-installed duplex lc clips).
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss -25 dB
Engineered for fast and reliable Gigabit connectivity between switches, sfp+ transceivers, media converters, patch panels and supports Gigabit Ethernet, Fiber Channel and other service provider applications. Ethernet 1/10Gb Distance Over OM1 Multimode Fiber:
Modal Bandwidth: 160-500Mhz-km @ 850nm / 275-500Mhz-km @ 1300nm:
1Gb up to 300 Meters @ 850 nm
1Gb up to 600 Meters @ 1310 nm
10Gb up to 33 Meters @ 850 nm
Every fiber optic patch cable FiberCablesDirect ships is individually tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician and carefully packaged with test results. We provide 35+ popular length options in our online catalogs between 0.5 and 300 meters that can ship the same day. Expedited Next Day, 2 Day, 3 Day, Ground and other delivery options available from USPS and UPS. FedEx service options also available for international orders.
We do it right with quality products, superior packaging and fast delivery anywhere in the world.
Need a fiber optic cable assembly not in our online catalog? No problem, we have plenty of options:
Try our Custom Fiber Cable Configurator, quickly build your own customized fiber optic cable then add to cart. You can select any cable type, any length, any connector configuration, any modality, any strand count, and more.
Call in your Custom Fiber Cable Request at (866) 933-4237 and our support team will help you get the perfect Fiber Cable for your specific project.
Additional Ordering Options.
Call in your Order to (866) 933-4237, we'll process your order right over the phone. Pay with a Check, Credit Card, PayPal or Create a FiberCablesDirect account and pay with a PO#.
Call in your Quote Request to (866) 933-4237 and your Quotation will be emailed.
FCDUS217v2015
413 Items
Data sheet
- Description
- Multimode 62.5/125 Duplex Fiber Optic Patch Cable / OM1 Fiber Jumper Cord
- Product Type
- Duplex Fiber Cable
- Cable Type
- Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
- Termination
- LC to LC Fiber Optic Cable
- Polish Type
- UPC
- Connector 1
- LC Duplex, 1.25mm form factor connector, ceramic ferrule.
- Polish Connector 1
- UPC (Ultra Physical Contact)
- Connector 2
- LC Duplex, 1.25mm form factor connector, ceramic ferrule.
- Polish Connector 2
- UPC (Ultra Physical Contact)
- Max Connector Loss
- 0.50 dB
- Typical Connector Loss
- 0.30 dB
- Typical Return Loss
- -25 dB
- Optical Mode Type
- OM1 Standard Multimode Fiber - 62.5/125um core/cladding | 10G GbE 10GBase-SR 33m, 1G GbE 1GBase-SR 550m (@ 1310nm), 1G GbE 1GBase-SR 275m (@ 850nm)
- Core / Cladding
- 62.5/125µm - 62.5 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
- Core Material
- Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
- Mode Type
- Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
- Strand Count
- 2 Fiber Strands
- Jacket Color
- Blue
- Jacket Material
- PVC (polyvinyl chloride) - Fire-retardant and very flexible for easy installation
- Jacket OD
- 2.0mm Outer Diameter Jacket
- UL Rating:
- OFNR (Optical fiber, nonconductive, riser) - Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs
- Compliance
- ROHS Compliant
- Quality Control
- Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
- Warranty
- Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
- Current Specials
- Free Shipping / Same Day Shipping available on fiber optic patch cable orders
Specific References
- upc
- 670628013449
Blue OM1 LC LC Fiber Patch Cables | 1Gb Duplex Corning 62.5/125 Multimode Fiber Optic Assembly. Durable small form factor (sff), 1.25mm ceramic ferrule, LC fiber connectors with duplex clips. High bandwidth 62.5um Corning multimode fiber (mmf) cable for high speed, low loss, data transmission. Blue OFNR, 2.0mm outer diameter, PVC jacketed jumpers with zip-cord.
