Multi-Packs - 20M OS2 LC LC Fiber Patch Cables 9/125 Duplex Singlemode

Data sheet

Description

Singlemode 9/125 Fiber Optic Patch Cable / OS2 Fiber Jumper Cord

Product Type

Multi-Pack 20M OS2 LC LC Fiber Patch Cables | Duplex LC to LC Singlemode Jumpers

Multi-Pack Length

20 Meter (65.61ft)

Cable Type

Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables

Termination

LC to LC Fiber Optic Cable

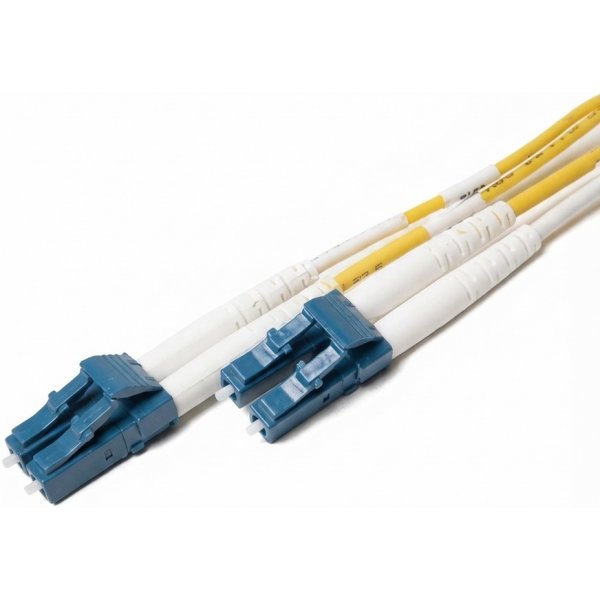

Connector 1

LC Duplex, 1.25mm form factor connector, ceramic ferrule.

Polish Connector 1

UPC (Ultra Physical Contact)

Connector 2

LC Duplex, 1.25mm form factor connector, ceramic ferrule.

Polish Connector 2

UPC (Ultra Physical Contact)

Max Connector Loss

0.50 dB

Typical Connector Loss

0.30 dB

Typical Return Loss

-55 dB

Optical Mode Type

OS2 (9/125 Singlemode) - 9 micron core, 125 micron cladding. 10 Gigabit speed from 5-10km at 1310nm and 30-40km at 1550nm.

Core / Cladding

9/125µm - Singlemode fiber optic cable has a 9 micron diameter fiber core and a 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)

Core Material

Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.

Mode Type

Singlemode – 9/125 Singlemode OS2 Fiber Cable is used for high speed fiber optic networking, excellent for retaining light pulse fidelity over long distances, high bandwidth.

1Gb Ethernet Dist

SMF - 5 to 10 km @ 1310nm / Maximum Attenuation 0.4 dB /km

10Gb Ethernet Dist

SMF - 10 to 40km @ 1310nm / Maximum Attenuation 0.4 dB/km

Strand Count

2 Fiber Strands

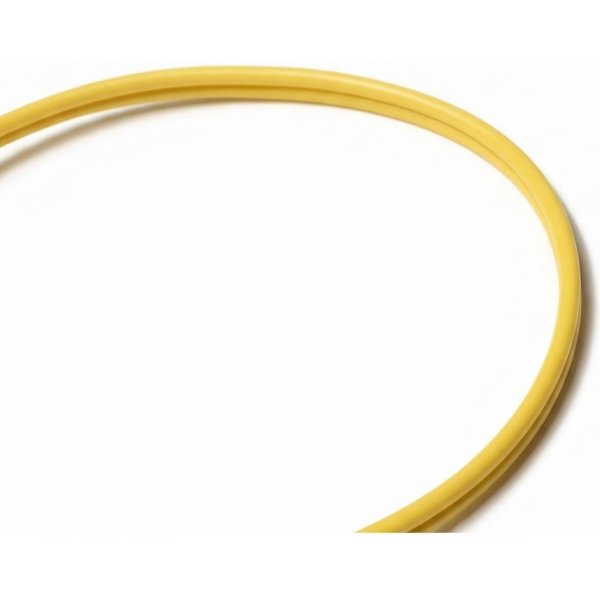

Jacket Color

Yellow - This is the standard jacket color for single-mode fiber optic jumper cords / patch cables.

Jacket Material

PVC (polyvinyl chloride) - Fire-retardant and very flexible for easy installation

Jacket OD

2.0mm Outer Diameter Jacket

UL Rating:

OFNR (Optical fiber, nonconductive, riser) - Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs

Compliance

ROHS Compliant

Quality Control

Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.

Warranty

Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.

Current Specials

Free Shipping / Same Day Shipping available on fiber optic patch cable orders

Storage Temperature

-40° C to + 70° C

Operating Temperature

-20° C to + 70° C

Specific References

upc

670628015085
