Multi-Packs - 30M OS2 LC LC Fiber Patch Cables 9/125 Duplex Singlemode

$45.95
FCDUS420v11776
500 Items
In Stock

Volume Discount Multi-Packs | 30M Singlemode LC LC Fiber Patch Cables | Pack Options: 2 Pack, 4 Pack, 6 Pack, 10 Pack, 12 Pack and 24 Pack.  Save time and money by purchasing your fiber patch cables in quantity.  OS2 LC to LC Duplex Jumpers, Riser Rated (OFNR), each assembled with Corning SMF 9/125 micron core/cladding optical fibers.

Multi-Pack
Quantity
Add Compare

Fiber Patch Cable Packs
  • Security Policy
    Security Policy
  • Delivery Policy
    Delivery Policy
  • Return Policy
    Return Policy

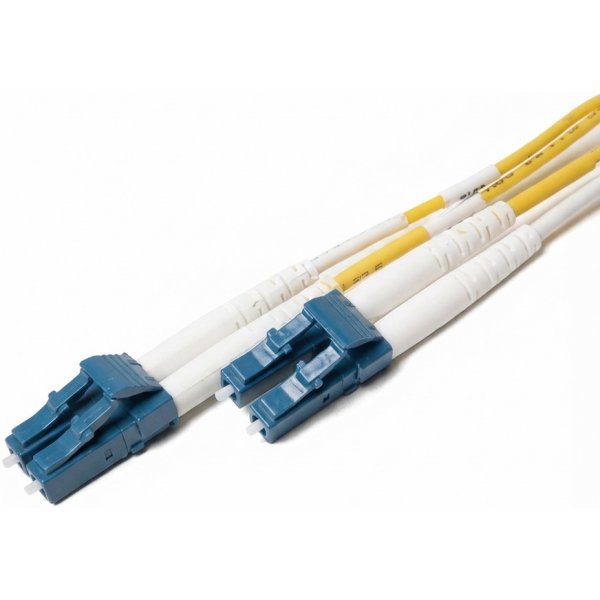

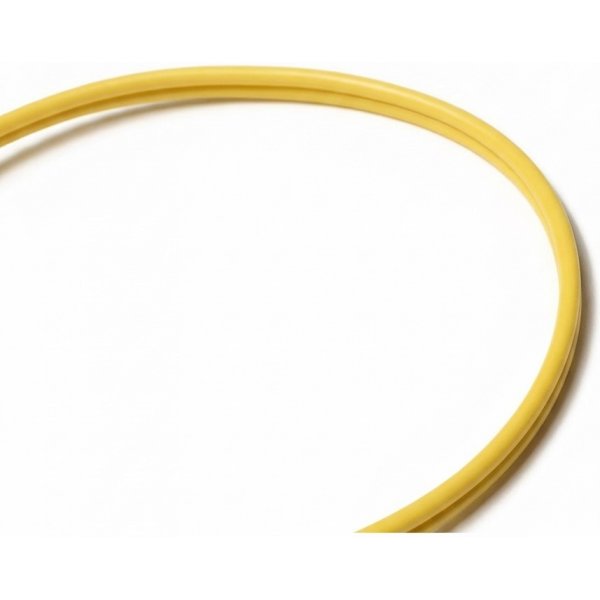

Multi-Pack - 30 Meter Singlemode LC LC Fiber Patch Cables | Pack Options: 2 Pack, 4 Pack, 6 Pack, 10 Pack, 12 Pack and 24 Pack. 1/10Gb Duplex 9/125 Corning OS2 Jumper Cord.  Accelerate network performance and extend your Gigabit reach with this duplex 9/125um Singlemode fiber optic patch cable.  Assembled with a yellow, OFNR (riser rated) PVC jacket that is water resistant, UV resistant, fire retardant and immune to electrical interference.  This durable SMF cable comes pre-terminated with 1.25mm, small form factor, ceramic ferrule, LC type connectors, including pre-installed duplex LC clips.  Connector insertion/return loss details as follows:

Maximum Insertion Loss: 0.50 dB
Typical Insertion Loss: 0.30 dB
Typical Return Loss -55 dB

Engineered for reliable, long-distance, Gigabit Ethernet connectivity between buildings, switches, servers, work stations, sfp+ transceivers, media converters, patch panels, and other SMF optical equipment. Ethernet interface types for 1Gb 10Gb 40Gb and 100Gb (Max Range: 2km/80km @ 1310nm/1550nm):

Fast Ethernet - 100BASE-FX
1G Ethernet - 1000BASE-SX, LX, EX, ZX, LH
10G Ethernet - 10GBASE-LR, SR, ER, ZR
40G Ethernet - 40GBASE-LR4, ER4
100G Ethernet - 100GBASE-LR4, ER4, CWDM4

Every fiber optic patch cable FiberCablesDirect ships is individually tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician and carefully packaged with test results. We provide 35+ popular length options in our online catalogs between 0.5 and 300 meters that can ship the same day. Expedited Next Day, 2 Day, 3 Day, Ground and other delivery options available from USPS and UPS. FedEx service options also available for international orders.

We do it right with quality products, superior packaging and fast delivery anywhere in the world.

Didn't find what you're looking for?

Try our Custom Cable Configurator, quickly build your own customized fiber optic cable and add to Cart. You can select any cable Type, any Length, any Connector configuration, any Modality, any Strand Count, any Quantity... we build to order.

Call in your Custom Cable Request and our support team will help you get the perfect fiber cable solution for your project.

Chat with FCD Tech Support for quick answers to your technical questions.

Additional Ordering Options:

Call in your Order and we'll process right over the phone.  Pay with a Check, Credit Card, or Create an account and pay with a PO#.
Call in your Quote Request and your Single Click checkout Quotation will be emailed.  You can easily complete the transaction online.

FCDUS420v11776
500 Items

Data sheet

Description
Singlemode 9/125 Fiber Optic Patch Cable / OS2 Fiber Jumper Cord
Product Type
Multi-Pack 30M OS2 LC LC Fiber Patch Cables | Duplex LC to LC Singlemode Jumpers
Multi-Pack Length
30 Meter (98.42ft)
Cable Type
Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
Termination
LC to LC Fiber Optic Cable
Polish Type
UPC
Connector 1
LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Polish Connector 1
UPC (Ultra Physical Contact)
Connector 2
LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Polish Connector 2
UPC (Ultra Physical Contact)
Max Connector Loss
0.50 dB
Typical Connector Loss
0.30 dB
Typical Return Loss
-55 dB
Optical Mode Type
OS2 (9/125 Singlemode) - 9 micron core, 125 micron cladding. 10 Gigabit speed from 5-10km at 1310nm and 30-40km at 1550nm.
Core / Cladding
9/125µm - Singlemode fiber optic cable has a 9 micron diameter fiber core and a 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
Core Material
Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
Mode Type
Singlemode – 9/125 Singlemode OS2 Fiber Cable is used for high speed fiber optic networking, excellent for retaining light pulse fidelity over long distances, high bandwidth.
1Gb Ethernet Dist
SMF - 5 to 10 km @ 1310nm / Maximum Attenuation 0.4 dB /km
10Gb Ethernet Dist
SMF - 10 to 40km @ 1310nm / Maximum Attenuation 0.4 dB/km
Strand Count
2 Fiber Strands
Jacket Color
Yellow - This is the standard jacket color for single-mode fiber optic jumper cords / patch cables.
Jacket Material
PVC (polyvinyl chloride) - Fire-retardant and very flexible for easy installation
Jacket OD
2.0mm Outer Diameter Jacket
UL Rating:
OFNR (Optical fiber, nonconductive, riser) - Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs
Compliance
ROHS Compliant
Quality Control
Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
Warranty
Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
Current Specials
Free Shipping / Same Day Shipping available on fiber optic patch cable orders
Storage Temperature
-40° C to + 70° C
Operating Temperature
-20° C to + 70° C

Specific References

upc
670628013258
