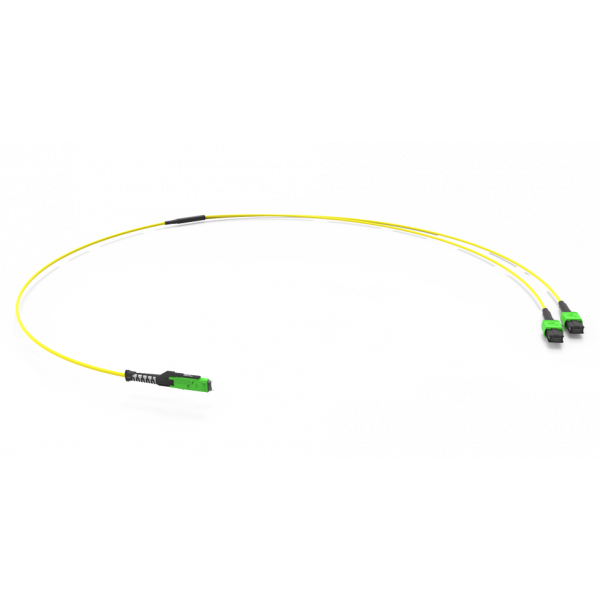

2 Meter - MMC24 APC male to 2 x MTP12 APC male

    Polarity B

    $239.94
    FCDUS777v123
    This is a custom cable - please contact sales@fibercablesdirect.com for availability

    DMSI’s MMC harnesses feature US Conec’s new, high-performance Very Small Form Factor (VSFF) multi-fiber optical connector broken out to MTP, MDC, or LC legs. Harnesses are available in both single-mode and multimode applications, along with both MMC-16 and MMC-24 connectors. Cable jackets are available in any color and length. Harnesses with MTP legs are available in many polarity configurations depending on the required application. Harnesses with MDC and LC Uniboot are available in Types A, B, and “MMC Harness Polarity”.

    Quantity
    Add Compare

    MMC Fiber Cables
    • Security Policy
      Security Policy
    • Delivery Policy
      Delivery Policy
    • Return Policy
      Return Policy
    Part Number Description
    H246-25024UxY2xxxM MMC24 Male to 2 × MTP12 Male Harness, 24 fibers, Single-mode OS2 10.0mm bend, [polarity type: A, B, Custom], Yellow Jacket, OFNP (Plenum), xxx length in meters
    H246-25024UxY9xxxM MMC24 Male to 2 × MTP12 Male Harness, 24 fibers, Single-mode OS2 10.0mm bend, [polarity type: A, B, Custom], Yellow Jacket, OFNR (Riser), xxx length in meters
    H246-25024UxYZxxxM MMC24 Male to 2 × MTP12 Male Harness, 24 fibers, Single-mode OS2 10.0mm bend, [polarity type: A, B, Custom], Yellow Jacket, LSZH, xxx length in meters
    FCDUS777v123

    Data sheet

    Polarity
    B
