OM2 ST ST Duplex Fiber Patch Cable 50/125 Multimode

$9.59

Part Number: FCDUS66v422

In stock 491 Items

In stock

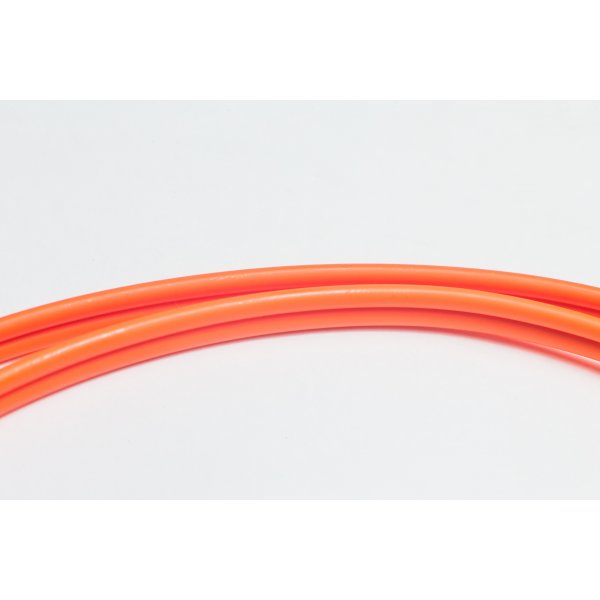

OM2 ST ST Duplex fiber optic patch cable 50/125 Multimode corning fiber core terminated with strong stainless steel ST connectors. A high bandwidth Multimode cable for high speed, low loss, data transmission. Orange colored, 3.0mm outer diameter, OFNR Riser Rated, PVC jacketed fiber optic jumper cord with zip-cord.

Length

Quantity

Add Compare

Security Policy
Delivery Policy
Return Policy

OM2 ST to ST duplex fiber patch cable with 50/125 Multimode Corning optical fiber core with strong stainless steel ST connectors for high cable density environments. A solid 50/125 multimode optical assembly for your fiber optic network needs. Wrapped in a durable, orange colored zip-cord fiber optic patch cable that has a 3.0mm outer diameter, OFNR riser rated PVC jacket that is flame retardant and UV resistant. Typically used for vertical pathways, shafts, and spaces between building floors.

Each fiber optic cable ordered from FiberCablesDirect is individually tested and bagged with test results inside. We also provide a Lifetime warranty on all our products. Orders for Om2 st st 50/125 multimode duplex cables above 35 meters may require an additional 1 to 2 days to ship depending on the quantity ordered. However, most orders ship within 24 hours or less.

Lengths available in our online catalog for Om2 St St 50/125 multimode duplex fiber optic cables: 0.5 Meter, 1 Meter, 2 Meter, 3 Meter, 4 Meter, 5 Meter, 6 Meter, 7 Meter, 8 Meter, 9 Meter, 10 Meter, 12 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter, 35 Meter, 40 Meter, 45 Meter, 50 Meter, 55 Meter, 60 Meter, 65 Meter, 70 Meter, 75 Meter, 80 Meter, 85 Meter, 90 Meter, 95 Meter, 100 Meter, 125 Meter, 150 Meter, 200 Meter, 250 Meter, and 300 Meter.

Need a fiber optic cable assembly not in our online catalog? No problem, we have plenty of options:

>> Try our Custom Cable Configurator, quickly build your own customized fiber optic cable and simply add to your Cart. You can select any Cable Type, any Length, any Connector configuration, any Modality, any Strand Count, and more.
>> Call in your Custom Cable Request at (866) 933-4237 and our support team will help you get the perfect Fiber Cable solution for your specific requirement.
Chat with FCD Tech Support for quick answers to your technical questions.

Additional Ordering Options.

>> Call in your Order at (866) 933-4237 we'll process your order right over the phone. Pay with a Check, Credit Card, or Create an account and pay with a PO#.

>> Call in your Quote Request at (866) 933-4237 and your Quotation will be emailed. With 1 simple click you can checkout online from your FiberCablesDirect.com account.

Reference FCDUS66v422

In stock 491 Items

Data sheet

Description: Multimode 50/125 Duplex Fiber Optic Patch Cable / OM2 Fiber Jumper Cord
Product Type: Fiber Optic
Cable Type: Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
Termination: ST to ST Fiber Optic Cable
Connector 1: ST Duplex, a long cylindrical, spring loaded connector with 2.5 mm ferrule.
Polish Connector 1: UPC (Ultra Physical Contact)
Connector 2: ST Duplex, a long cylindrical, spring loaded connector with 2.5 mm ferrule.
Polish Connector 2: UPC (Ultra Physical Contact)
Max Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Optical Mode Type: OM2 Standard Multimode Fiber - 50/125um core/cladding | 10G GbE 10GBase-SR 82m, 1G GbE 1GBase-SR 550m.
Core / Cladding: 50/125µm - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
Core Material: Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
Mode Type: Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
1Gb Ethernet Dist: OM2 Distance is 600 Meters at 850 nm / 600 Meters at 1310 nm
10Gb Ethernet Dist: OM2 Distance is 82 Meters at 850 nm / 300 Meters at 1310 nm
Bandwidth: OM2 GbE LAN Fiber - 500MHz-km @850nm, 500MHz-km @1300nm.
Strand Count: 2 Fiber Strands
Jacket Color: Orange - This is the standard jacket color for OM1/OM2 multimode fiber jumper cords / fiber patch cables.
Jacket Material: PVC (polyvinyl chloride) - Fire-retardant and very flexible for easy installation
Jacket OD: 3.0mm Outer Diameter Jacket
UL Rating:: OFNR (Optical fiber, nonconductive, riser) - Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs
Compliance: ROHS Compliant
Length Options: 0.5-Mtr 1-Mtr 2-Mtr 3-Mtr 4-Mtr 5-Mtr 6-Mtr 7-Mtr 8-Mtr 9-Mtr 10-Mtr 12-Mtr 15-Mtr 20-Mtr 25-Mtr 30-Mtr 35-Mtr 40-Mtr 45-Mtr 50-Mtr 55-Mtr 60-Mtr 65- Mtr 70-Mtr 75-Mtr 80-Mtr 85-Mtr 90-Mtr 95-Mtr 100-Mtr 125-Mtr 150-Mtr 200-Mtr 250-Mtr 300-Mtr
Quality Control: Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
Warranty: Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
Current Specials: Free Shipping / Same Day Shipping available on fiber optic patch cable orders
Storage Temperature: -40° C to + 70° C
Operating Temperature: -20° C to + 70° C
