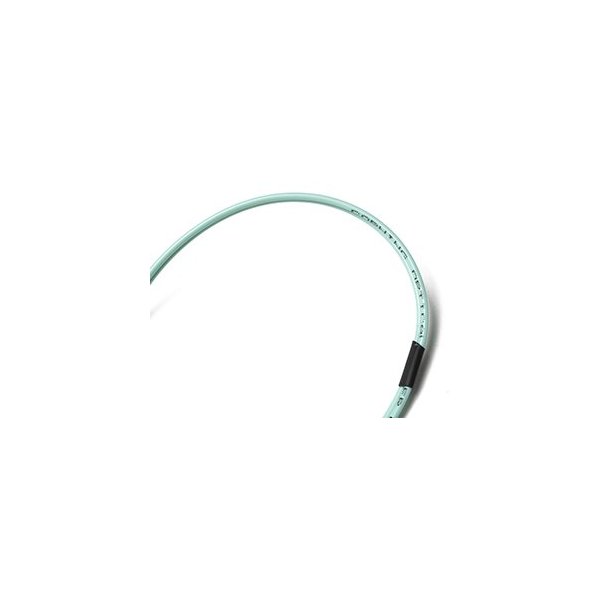

OM4 LC LC Plenum Duplex Fiber Patch Cable 100G 50/125 Multimode

New

OM4 LC LC 40/100Gb Plenum 50/125 Multimode Duplex Fiber Optic Cable.  OFNP multimode fiber (mmf) optical assembly with self-extinguishing, flame retardant, UV resistant, plenum rated jacket, Corning 50/125um fiber core, zip-cord reinforced and terminated with small form factor 1.25mm ceramic ferrule LC connectors including duplex lc clips.

More details

30484 Items

In stock

$29.95

Shipping Rates

Add to wishlist

You must be logged

DescriptionPlenum OM4 Multimode Fiber Optic Patch Cable / Fiber Jumper Cord (OFNP)
Product TypePlenum OFNP Fiber Optic Patch Cable
Cable TypeMale to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
TerminationLC to LC Fiber Optic Cable

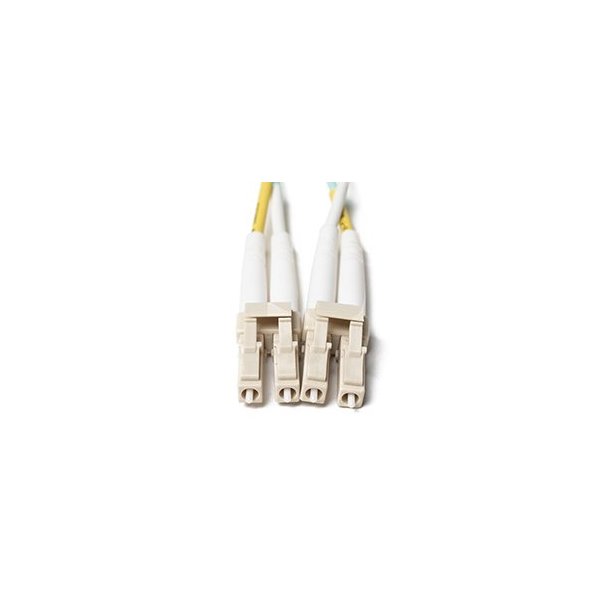

Connector 1LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Polish Connector 1UPC (Ultra Physical Contact)
Connector 2LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Polish Connector 2UPC (Ultra Physical Contact)
Max Connector Loss0.50 dB
Typical Connector Loss0.30 dB
Typical Return Loss-25 dB
Optical Mode TypeOM4 (Multimode) - 50 micron core, 125 micron cladding with 550 meter rated glass at 100Gb
Core / Cladding50/125┬Ám - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
Core MaterialCorning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
Mode TypeMultimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
TechnologyLaser-Optimized Multimode Fiber (LOMMF)
1Gb Ethernet DistOM4 Distance is 1040 Meters at 850nm / 600 Meters at 1310nm.
10Gb Ethernet DistOM4 Distance is 550 Meters at 850 nm / 300 Meters at 1310 nm
Bandwidth3600/500 MHz-km @850/1300 nm (OM4 - Optimized for 850nm VCSELs / higher speed)
Strand Count2 Fiber Strands
Jacket ColorAqua - This is the standard jacket color for these multimode fiber jumper cords / fiber patch cables.
Jacket MaterialLow Smoke Zero Halogen (LSZH / LS0H)
Jacket OD2.0mm Outer Diameter Jacket
UL Rating:OFNP (Optical fiber, nonconductive, plenum) - Certified for use in plenum applications
ComplianceRoHS Compliant | TAA Compliant
Length Options0.5-Mtr 1-Mtr 2-Mtr 3-Mtr 4-Mtr 5-Mtr 6-Mtr 7-Mtr 8-Mtr 9-Mtr 10-Mtr 12-Mtr 15-Mtr 20-Mtr 25-Mtr 30-Mtr 35-Mtr 40-Mtr 45-Mtr 50-Mtr 55-Mtr 60-Mtr 65- Mtr 70-Mtr 75-Mtr 80-Mtr 85-Mtr 90-Mtr 95-Mtr 100-Mtr 125-Mtr 150-Mtr 200-Mtr 250-Mtr 300-Mtr
Quality ControlFully inspected and tested by a qualified technician. Test results bagged and shipped with product.
WarrantyLifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
Current SpecialsFree Shipping / Same Day Shipping available on fiber optic patch cable orders

OM4 LC LC 10Gb 40Gb 100Gb Plenum 50/125 Multimode Duplex Fiber Optic Cable.  OFNP (Optical Fiber Non-conductive Plenum) fire rated assembly with aqua, self-extinguishing fire retardant jacket, Corning optical fiber glass core and small form factor (SFF) 1.25mm ceramic ferrule LC connectors (with duplex clips). This Laser-Optimized Multimode Fiber (LOMMF) jumper is built for performance and designed to last in rough, high density cable environments, most commonly used for schools, healthcare facilities and government building.



Each plenum rated OFNP fiber optic cable assembly we ship is individually tested and carefully packaged to ensure safe delivery. We also provide complete test results packaged with each fiber optic jumper and a Lifetime warranty on all our fiber optic products. Orders for cables above 35 meters may require an additional 1 to 2 days to ship depending on the quantity ordered. However, most orders ship within 24 hours or less.





Lengths available in our online catalog for Om4 Lc lc plenum multimode duplex cables typically include stock of: 0.5 Meter, 1 Meter, 2 Meter, 3 Meter, 4 Meter, 5 Meter, 6 Meter, 7 Meter, 8 Meter, 9 Meter, 10 Meter, 12 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter, 35 Meter, 40 Meter, 45 Meter, 50 Meter, 55 Meter, 60 Meter, 65 Meter, 70 Meter, 75 Meter, 80 Meter, 85 Meter, 90 Meter, 95 Meter, 100 Meter, 125 Meter, 150 Meter, 200 Meter, 250 Meter, and 300 Meter.

Didn't find what you're looking for?

Try our Custom Cable Configurator, quickly build your own customized fiber optic cable and add to Cart. You can select any Cable Type, any Length, any Connector configuration, any Modality, any Strand Count, any Quantity... we build to order.

Call in your Custom Cable Request and our support team will help you get the perfect Fiber Cable solution for your specific requirement.

Chat with FCD Tech Support for quick answers to your technical questions.

Additional Ordering Options:

Call in your Order and we'll process right over the phone.  Pay with a Check, Credit Card, or Create an account and pay with a PO#.

Call in your Quote Request and your Single Click checkout Quotation will be emailed.  You can easily complete the transaction online.

ImagePriceReferenceCombination nameQuantityAvailabilityAdd to cart
$29.95 Tax excl.FCDUS159v1285Length: 1 Meter831In stock [-] [+]
$31.95 Tax excl.FCDUS159v1286Length: 2 Meter855In stock [-] [+]
$33.95 Tax excl.FCDUS159v1287Length: 3 Meter827In stock [-] [+]
$35.95 Tax excl.FCDUS159v1288Length: 4 Meter839In stock [-] [+]
$37.95 Tax excl.FCDUS159v1289Length: 5 Meter870In stock [-] [+]
$39.95 Tax excl.FCDUS159v1290Length: 6 Meter887In stock [-] [+]
$41.95 Tax excl.FCDUS159v1291Length: 7 Meter864In stock [-] [+]
$43.95 Tax excl.FCDUS159v1292Length: 8 Meter898In stock [-] [+]
$45.95 Tax excl.FCDUS159v1293Length: 9 Meter835In stock [-] [+]
$47.95 Tax excl.FCDUS159v1294Length: 10 Meter823In stock [-] [+]
$51.95 Tax excl.FCDUS159v1295Length: 12 Meter885In stock [-] [+]
$55.95 Tax excl.FCDUS159v1296Length: 14 Meter895In stock [-] [+]
$57.95 Tax excl.FCDUS159v1297Length: 15 Meter867In stock [-] [+]
$67.95 Tax excl.FCDUS159v1299Length: 20 Meter868In stock [-] [+]
$77.95 Tax excl.FCDUS159v1300Length: 25 Meter879In stock [-] [+]
$84.95 Tax excl.FCDUS159v1301Length: 30 Meter818In stock [-] [+]
$91.95 Tax excl.FCDUS159v1302Length: 35 Meter842In stock [-] [+]
$98.95 Tax excl.FCDUS159v1303Length: 40 Meter878In stock [-] [+]
$105.95 Tax excl.FCDUS159v1304Length: 45 Meter905In stock [-] [+]
$112.95 Tax excl.FCDUS159v1305Length: 50 Meter836In stock [-] [+]
$126.95 Tax excl.FCDUS159v1306Length: 60 Meter909In stock [-] [+]
$182.95 Tax excl.FCDUS159v1308Length: 100 Meter843In stock [-] [+]
$119.95 Tax excl.FCDUS159v9920Length: 55 Meter889In stock [-] [+]
$133.95 Tax excl.FCDUS159v9921Length: 65 Meter897In stock [-] [+]
$140.95 Tax excl.FCDUS159v9922Length: 70 Meter886In stock [-] [+]
$147.95 Tax excl.FCDUS159v9923Length: 75 Meter878In stock [-] [+]
$154.95 Tax excl.FCDUS159v9924Length: 80 Meter882In stock [-] [+]
$161.95 Tax excl.FCDUS159v9925Length: 85 Meter882In stock [-] [+]
$168.95 Tax excl.FCDUS159v9926Length: 90 Meter867In stock [-] [+]
$175.95 Tax excl.FCDUS159v9927Length: 95 Meter886In stock [-] [+]
$217.95 Tax excl.FCDUS159v9928Length: 125 Meter873In stock [-] [+]
$252.95 Tax excl.FCDUS159v9929Length: 150 Meter881In stock [-] [+]
$322.95 Tax excl.FCDUS159v9930Length: 200 Meter912In stock [-] [+]
$392.95 Tax excl.FCDUS159v9931Length: 250 Meter919In stock [-] [+]
$462.95 Tax excl.FCDUS159v9932Length: 300 Meter878In stock [-] [+]
